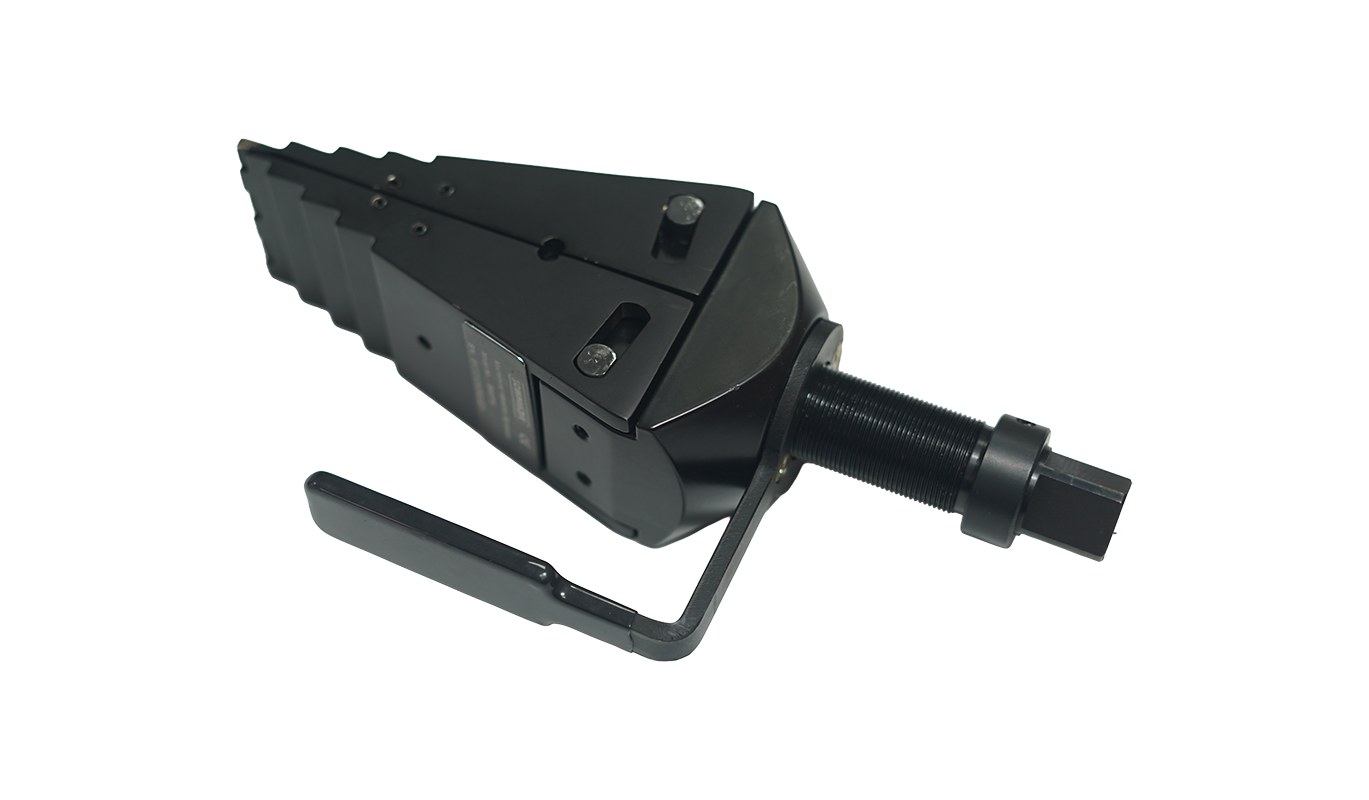

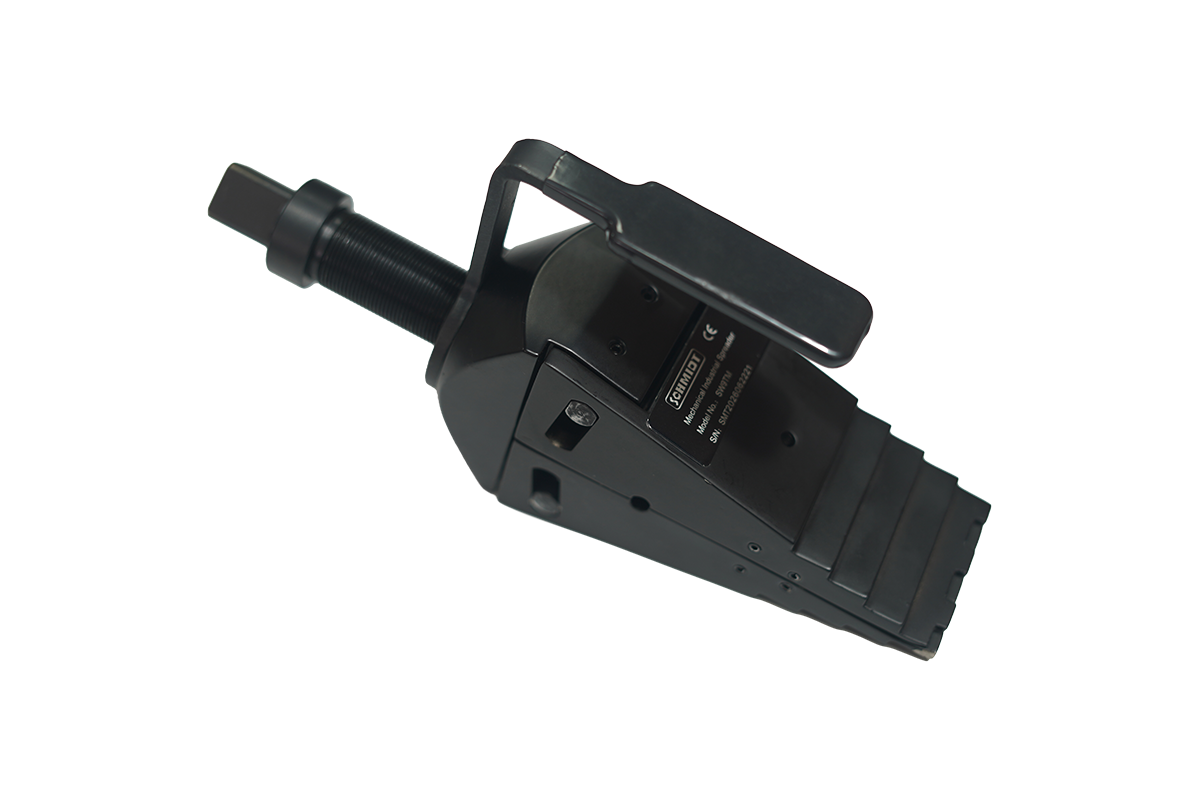

SW9TM Hydraulic Wedge Spreader Flange Spreader Tool Interlocking Wedge

Power : Split Hydraulic Power

Weight/Kg : 7.5/18.1/10

Price : 1700

Capacity/Ton : 24

Packaging Details : Carton package

Jaw Width/mm : 60

Oil Capacity/cm³ : 250

Payment Terms : T/T

Maximum Spread/mm : 103,5

Delivery Time : 5-8 days

Tip Clearance/mm : 6

MOQ : 1

Model : SW9TM-SWi20/25TI-SW14.5TI

Contact Now

SW9TM Heavy Duty Flange Spreader with Hydraulic Power and Interlocking Wedge

Schmidt Hydraulic Flange Spreaders

Engineered for zero-clearance challenges, these hydraulic spreaders deliver up to 24-ton force with precision control. Designed for maintenance and testing in confined spaces, they ensure separation without damaging sealing surfaces.

SW9TM Hydraulic Wedge Spreader Flange Spreader Tool Interlocking Wedge

Key Advantages

✅ Integrated Wedge Design: Ensures friction-free, parallel movement.
✅ Interlocking Wedge: Eliminates slippage risk during operation.
✅ Ultra-Slim Profile: Requires only a 6mm gap for entry.
✅ Surface Protection: Precision-controlled separation prevents damage to critical sealing surfaces.

Product Attributes

FOB Unit: set

Product MOQ: Not specified

FOB Price: 0

Packaging: Not specified

Technical Specifications

Model	Capacity (Ton)	Max Spread (mm)	Weight (Kg)
SW14.5TI	15	81	10
SWi20/25TI	24	103.5	18.1
SW9TM	9	81	7.5

Product Tags:

sw9tm hydraulic wedge spreader

flange spreader tool interlocking wedge

sw9tm flange spreader tool

SW9TM Hydraulic Wedge Spreader Flange Spreader Tool Interlocking Wedge Images
